Working with TUFLOW Outputs#
Most of the common TUFLOW outputs are supported by pytuflow. This includes: TPC,
XMDF, and NCGrid. Static, single result outputs such as TIF and ASC
are also supported.
Output classes all derive from the same base class, and as such, share a common interface. This makes the accessing data from the outputs consistent and mostly format agnostic. There are some slight differences between a time-series output, which uses IDs, and a map output, which uses coordinates. However, the method names and usage are the same.
The examples below use models from the TUFLOW Example Model Dataset.
TPC#
The TPC class can be loaded by initialising the class with the path to the .tpc file, or
by using the TCF.tpc() method. The below example uses results from EG15_001.tcf.
>>> from pytuflow import TPC
>>> tpc = TPC('path/to/results/plot/EG15_001.tpc')
or
>>> from pytuflow import TCF
>>> tcf = TCF('path/to/EG15_001.tcf')
>>> tpc = tcf.context().tpc()
Result Information#
Information can be obtained from the results, such as the IDs, result types, and the time steps using
TPC.ids(), TPC.data_types(), and
TPC.times() methods respectively.
>>> tpc.ids()
['FC01.1_R.1', 'FC01.1_R.2', 'FC01.2_R.1', ..., 'Pipe8', 'Pipe9']
>>> tpc.data_types()
['water level',
'mass balance',
'node flow regime',
'flow',
'velocity',
'channel entry losses',
'channel additional losses',
'channel exit losses',
'channel flow regime']
>>> tpc.times()
[0.0, 0.016666666666666666, 0.03333333333333333, ..., 2.9833333333333334, 3.0]
These methods also accept an optionals filter_by argument, which can be used to filter the return data by
a given domain, geometry, data type, or ID. For example, to get the IDs only for 2D domain (PO) results:
>>> tpc.ids(filter_by='po')
[]
In this case, there are no 2D results in the TPC file, so an empty list is returned. We can also filter by geometry, and we can conbine the geometry filter with the domain filter:
>>> tpc.ids('1d/line')
['FC01.1_R', 'FC01.2_R', 'FC04.1_C', 'Pipe0', 'Pipe1', ..., 'Pit8', 'Pit9']
>>> tpc.ids('channel')
['FC01.1_R', 'FC01.2_R', 'FC04.1_C', 'Pipe0', 'Pipe1', ..., 'Pit8', 'Pit9']
The "channel" filter is a shorthand for "1d/line" since channels are only a 1D type. A similar shorthand exists
for "1d/point" and "node".
Time-Series#
Time-series data can be accessed using the TPC.time_series() method:
>>> tpc.time_series('Pipe1', 'flow')
channel/flow/Pipe1
time
0.000000 0.000
0.016667 0.009
0.033333 0.040
0.050000 0.075
0.066667 0.106
... ...
2.933333 0.000
2.950000 0.000
2.966667 0.000
2.983334 0.000
3.000000 0.000
Since a given ID could exist in multiple domains, for example, a 1D node, a 2D PO point, and a RL point could all have the same name (TUFLOW allows this), the return DataFrame header will include the domain, result type, and ID in the column name.
It’s also possible to pass in a list of IDs and/or result types to the TPC.time_series()
method to get multiple time-series at once:
>>> tpc.time_series(['Pipe1', 'Pipe2'], ['flow', 'velocity'])
channel/flow/Pipe1 channel/flow/Pipe2 channel/velocity/Pipe1 channel/velocity/Pipe2
time
0.000000 0.000 0.000 0.000 0.000
0.016667 0.009 0.005 0.510 0.456
0.033333 0.040 0.014 0.740 0.567
0.050000 0.075 0.021 0.875 0.632
0.066667 0.106 0.029 0.966 0.681
... ... ... ... ...
2.933333 0.000 0.000 0.000 0.000
2.950000 0.000 0.000 0.000 0.000
2.966667 0.000 0.000 0.000 0.000
2.983334 0.000 0.000 0.000 0.000
3.000000 0.000 0.000 0.000 0.000
Section#
TPC section data returns a long section from the given channel ID to either the outlet of the connected channels, or if a second channel ID is provided, to that channel.
>>> tpc.section('Pipe1', 'h', 1.)
branch_id channel node offset h
0 0 Pipe1 Pit2 0.0 43.7653
6 0 Pipe1 Pit3 26.6 43.7654
1 0 Pipe19 Pit3 26.6 43.7654
7 0 Pipe19 Pit16 58.3 43.7652
2 0 Pipe5 Pit16 58.3 43.7652
8 0 Pipe5 Pit15 94.8 43.7652
3 0 Pipe6 Pit15 94.8 43.7652
9 0 Pipe6 Pit14 126.2 43.7654
4 0 Pipe15 Pit14 126.2 43.7654
10 0 Pipe15 Pit13 140.0 43.7653
5 0 Pipe16 Pit13 140.0 43.7653
11 0 Pipe16 Pipe16.2 212.8 43.7648
In the example above, we use the well known short-hand "h" for the "water level" result type. pytuflow
accepts well known short-hands for result types, and it’s worth nothing that the column name in the returned DataFrame
will be set based on the result type the user provided. For example, in the example above, "h" is provided and the
column name is set to "h". If the user provided "water level", then column would be set to "water level".
This is also true for the TPC.time_series().
A flow trace downstream could branch into multiple channels that go in different directions, the
TPC.section() method will return data for all branches. The branch_id column
is used to identify the branch. If the data is used for plotting, the branch_id can be used to group the data.
XMDF#
The XMDF class is used to read TUFLOW XMDF map outputs (.xmdf files). Other map output formats, such as the NetCDF grid format (NCGrid) and the TUFLOW FV NetCDF mesh output (NCMesh) share similar methods and the examples below are transferable to those formats.
Similar to the TPC class, the XMDF class can be loaded by
initialising the class with the path to the .xmdf file. Unlike the TPC class, the
TCF class does not have a method to load the XMDF automatically. The reason for this, is that
the .tpc output is always created by TUFLOW, whereas the .xmdf output is optional. It is very easy to
obtain the path to the .xmdf file from your TUFLOW model. The example below uses results from
EG00_001.tcf.
>>> from pytuflow import TCF, XMDF
>>> tcf = TCF('path/to/EG00_001.tcf')
>>> xmxdf_path = tcf.context().output_folder_2d() / f'{tcf.context().output_name()}.xmdf'
>>> xmdf = NCGrid(xmxdf_path)
Result Information#
Information, such as result types and time steps, can be obtained using XMDF.data_types()
and XMDF.times() methods respectively.
>>> xmdf.data_types()
['water level',
'depth',
'velocity',
'z0',
'max water level',
'max depth',
'max velocity',
'max z0',
'tmax water level']
>>> xmdf.times()
[0.0, 0.08333333333333333, 0.16666666666666666, ..., 2.9166666666666665, 3.0]
It’s possible to filter the return data by whether the result type is temporal/static and/or scalar/vector.
>>> xmdf.data_types(filter_by='temporal')
['water level', 'depth', 'velocity', 'z0']
>>> xmdf.data_types(filter_by='vector')
['velocity', 'max velocity']
>>> xmdf.data_types(filter_by='static/scalar')
['max water level', 'max depth', 'max z0', 'tmax water level']
Time-Series#
The XMDF.time_series() method is very similar to the TPC.time_series()
method, except that it takes a spatial location (coordinates) instead of an ID. The coordinates can be a
tuple (x, y) coordinate, a WKT string "POINT (x y)", or a file path to a GIS point file (e.g. .shp) containing one or more points.
In the example below, we will use the gis\2d_po_EG02_010_P.shp file from the TUFLOW example model dataset.
>>> xmdf.time_series('./gis/2d_po_EG02_010_P.shp', 'water level')
PO_01/water level PO_02/water level
time
0.000000 NaN 36.500000
0.083333 NaN 36.483509
0.166667 NaN 36.457958
0.250000 NaN 36.441391
0.333333 NaN 36.431271
0.416667 NaN 36.426140
0.500000 NaN 36.423336
0.583333 NaN 36.421467
0.666667 40.110428 36.420143
... ... ...
2.833333 42.804726 38.509300
2.916667 42.793350 38.429859
3.000000 42.781895 38.342941
Section#
The XMDF.section() extracts a cross-section from the results at a given time,
from a given polyline. The polyline can be a series of coordinates, a WKT string, or a path to a GIS polyline file.
The example below uses the gis\2d_po_EG02_010_L.shp file from the TUFLOW example model dataset.
>>> xmdf.section('./gis/2d_po_EG02_010_L.shp', 'water level', 1.)
PO_01 PO_02
offset water level offset water level
0 0.000000 NaN 0.000000 NaN
1 0.223653 NaN 0.378194 NaN
2 2.947713 NaN 3.266278 NaN
3 7.948157 NaN 8.285645 NaN
4 12.948420 NaN 12.927794 NaN
.. ... ... ... ...
69 NaN NaN 309.448305 NaN
70 NaN NaN 314.467647 NaN
71 NaN NaN 319.486920 NaN
72 NaN NaN 323.888631 NaN
73 NaN NaN 325.780984 NaN
Note, that the returned DataFrame does not use a common index, as the section data comes from different polylines.
The printed DataFrame is truncated and does contain valid values within the truncated section. The first PO line PO_01
is shorter than the second PO line PO_02, so the last rows are NaN for the first PO line.
Surface#
It’s also possible to extract the 2D surface from map outputs at a given time step. With the surface data, it’s possible to perform all sorts of custom analyses such as differences between results such as statistics, or histograms.
An example extracting the maximum velocity surface:
>>> df = xmdf.surface('max velocity', time=-1) # time value can be any value for static datasets such as maximums
>>> df
x y value active
0 292940.043 6177590.372 0.0 False
1 292938.904 6177585.504 0.0 False
2 292934.036 6177586.643 0.0 False
3 292935.174 6177591.511 0.0 False
4 292944.912 6177589.234 0.0 False
... ... ... ... ...
20944 293595.735 6178417.774 0.0 False
20945 293590.866 6178418.913 0.0 False
20946 293600.603 6178416.635 0.0 False
20947 293605.472 6178415.496 0.0 False
20948 293610.340 6178414.357 0.0 False
We can count the number of cells in each velocity range as defined by the user:
>>> import numpy as np
>>> bins = [0, 0.5, 1.0, 2.5, 5.0, 20.]
>>> mask = df['active'] # the active (wet) mask
>>> counts, _ = np.histogram(df.loc[mask, 'value'], bins)
>>> counts
array([4368, 1820, 2030, 5, 0])
The above calculation tells us that there are 5 cells with a maximum velocity between 2.5 m/s and 5.0 m/s and no cells with a maximum velocity above 5.0 m/s.
Surface Differences#
A similar calculation could be performed on a difference surface to see how many cells exceed certain thresholds. As an example, using results from the example model dataset EG16_~s1~_001.tcf which contains two scenarios - EXG and D01. It is assumed that both scenarios have been run and the results are available.
First load the results and extract the maximum water level surfaces for both scenarios. Because we are working with maximum water level, which is a static result, we can use any time value when extracting the surface. Here we use time=-1 to indicate that it is a static result.
>>> exg = XMDF('/path/to/EG16_EXG_001.xmdf')
>>> d01 = XMDF('/path/to/EG16_D01_001.xmdf')
>>> exg_wl = exg.surface('max water level', time=-1)
>>> d01_wl = d01.surface('max water level', time=-1)
We also need to consider inactive cells in either scenario. In this case, we will treat inactive cells as having the same elevation as the bed level. So for this, we also need to extract the surface for the bed level and then set the inactive cells to the bed level:
>>> exg_z = exg.surface('bed level', time=-1)
>>> d01_z = d01.surface('bed level', time=-1)
>>> exg_wl.loc[~exg_wl['active'], 'value'] = exg_z.loc[~exg_wl['active'], 'value']
>>> d01_wl.loc[~d01_wl['active'], 'value'] = d01_z.loc[~d01_wl['active'], 'value']
Now we perform the difference and then count the number of cells that exceed certain thresholds. We will exclude every cell that is inactive in both scenarios so that we are only comparing wet cells in at least one scenario.
>>> mask = exg_wl['active'] | d01_wl['active'] # combined mask
>>> diff_wl = d01_wl.loc[mask, 'value'] - exg_wl.loc[mask, 'value'] # difference
>>> bins = [
min(diff_wl.min() - 0.1, -5),
-2.5, -1.0, -0.5, -0.25, -0.1, 0, 0.1, 0.25, 0.5, 1.0, 2.5,
max(diff_wl.max(), 5)
]
>>> counts, _ = np.histogram(diff_wl, bins)
>>> counts
array([ 0, 3, 5, 62, 110, 915, 3580, 2425, 6, 13, 0,
975])
It’s also possible to visualise this with matplotlib:
>>> import matplotlib.pyplot as plt
>>> plt.hist(diff_wl, bins)
>>> plt.show()

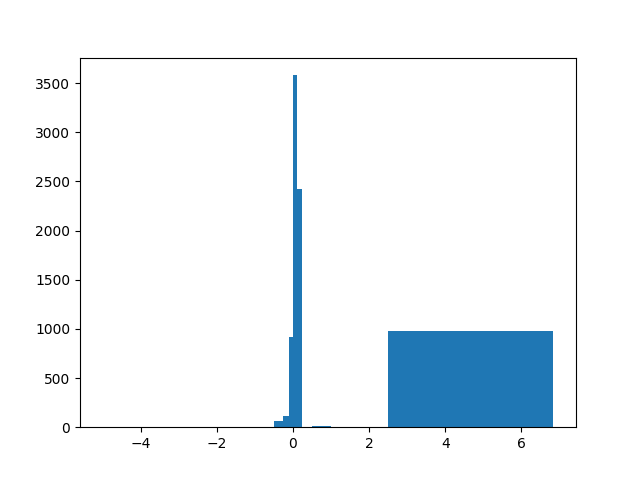

In the above histogram, we can see that there are a significant number of cells with differences above 2 metres. These may be on the development site and should not be considered an impact. We can mask these areas by converting the returned DataFrame to a GeoDataFrame and masking the area using a polygon shapefile of the development site.
>>> import geopandas as gpd
>>> gdf = gpd.GeoDataFrame(
diff_wl,
geometry=gpd.points_from_xy(exg_wl.loc[mask, 'x'], exg_wl.loc[mask, 'y'])
)
>>> shp = gpd.read_file('/path/to/site_boundary.shp')
>>> inters = gdf.geometry.interesects(shp.geometry.iloc[0]) # assuming only one polygon in shapefile
>>> masked_diff = diff_wl.loc[~inters]

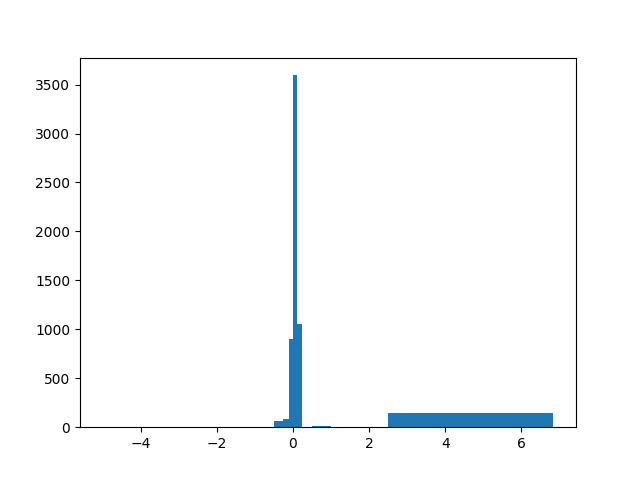

>>> plt.hist(masked_diff, bins)
>>> plt.show()
